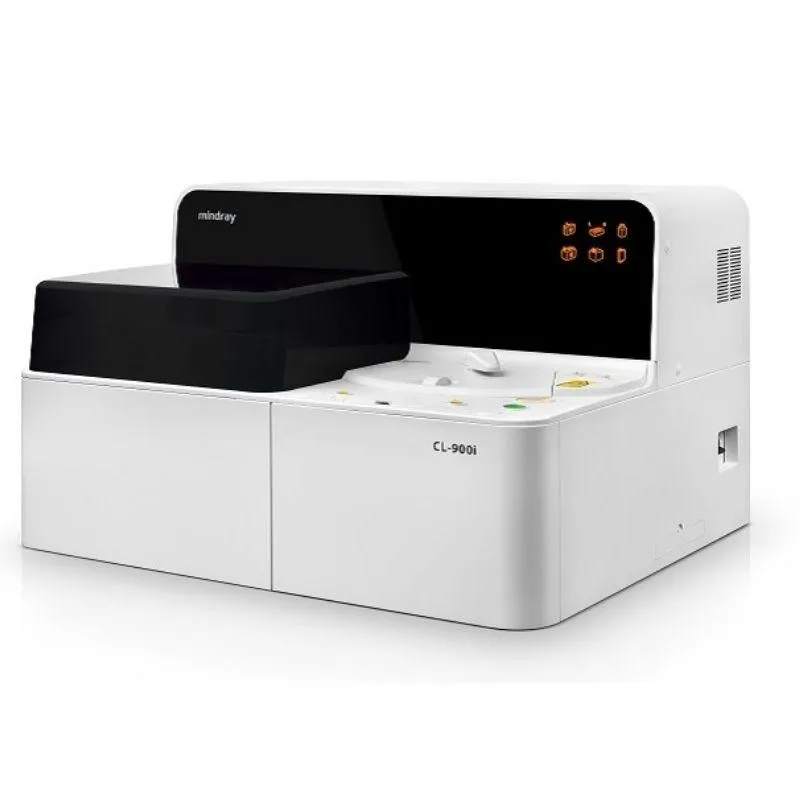

Mindray CL-900i Chemiluminescence Immunoassay Analyzer – Fully Automated CLIA System

The Mindray CL-900i Chemiluminescence Immunoassay Analyzer is a compact, fully automated CLIA (Chemiluminescence Immunoassay) system designed to deliver fast, accurate, and highly sensitive immunoassay testing for small- to medium-volume laboratories. Utilizing the enhanced ALP-AMPPD chemiluminescence detection method, the CL-900i offers a throughput of up to 180 tests per hour while maintaining excellent analytical performance and operational efficiency. It features continuous loading of samples and reagents, intelligent consumables management, and user-friendly operation, making it ideal for routine and specialized diagnostic testing.

Key Features

• Fully automated chemiluminescence immunoassay (CLIA) analyzer
• Throughput of up to 180 tests per hour
• Enhanced ALP-AMPPD chemiluminescence technology
• 50 sample positions with continuous loading
• 15 refrigerated reagent positions (2–8°C)
• Automatic magnetic particle mixing
• Precise magnetic separation technology
• Built-in liquid level detection and clot detection
• One-key operation with intuitive software interface
• Continuous loading of samples, reagents, substrates, and cuvettes
• Intelligent consumables management
• Low carryover with advanced probe washing technology
• Compact footprint suitable for laboratories with limited space

Benefits

• Delivers highly sensitive and accurate immunoassay results
• Increases laboratory productivity through automation
• Reduces manual intervention and operator workload
• Supports continuous sample processing for improved workflow
• Enhances diagnostic confidence with reliable analytical performance
• Compact design maximizes laboratory space utilization
• Easy operation minimizes staff training requirements
• Suitable for routine and specialized immunoassay testing

Applications

Suitable for:

• Hospital laboratories
• Clinical diagnostic laboratories
• Private medical laboratories
• Research institutions
• Reference laboratories
• Endocrinology testing
• Thyroid function testing
• Fertility hormone analysis
• Infectious disease screening
• Cardiac marker testing
• Tumor marker testing
• Diabetes marker testing
• Vitamin and anemia testing
• Inflammation marker analysis

Specifications

• Product Name: Mindray CL-900i Chemiluminescence Immunoassay Analyzer
• Type: Fully Automated CLIA Analyzer
• Technology: Enhanced ALP-AMPPD Chemiluminescence
• Detection Method: Photon Counting
• Throughput: Up to 180 Tests/Hour
• Sample Positions: 50
• Reagent Positions: 15 (Refrigerated, 2–8°C)
• Incubation Positions: 82
• Sample Volume: 10–200 µL
• Reagent Volume: 10–200 µL
• Operating Temperature: 37°C ± 0.3°C (reaction system)
• Dimensions (W × D × H): 860 × 740 × 560 mm
• Weight: Approximately 132 kg
• Power Supply: 100–240 V AC, 50/60 Hz
• Application: Automated Chemiluminescence Immunoassay Testing
