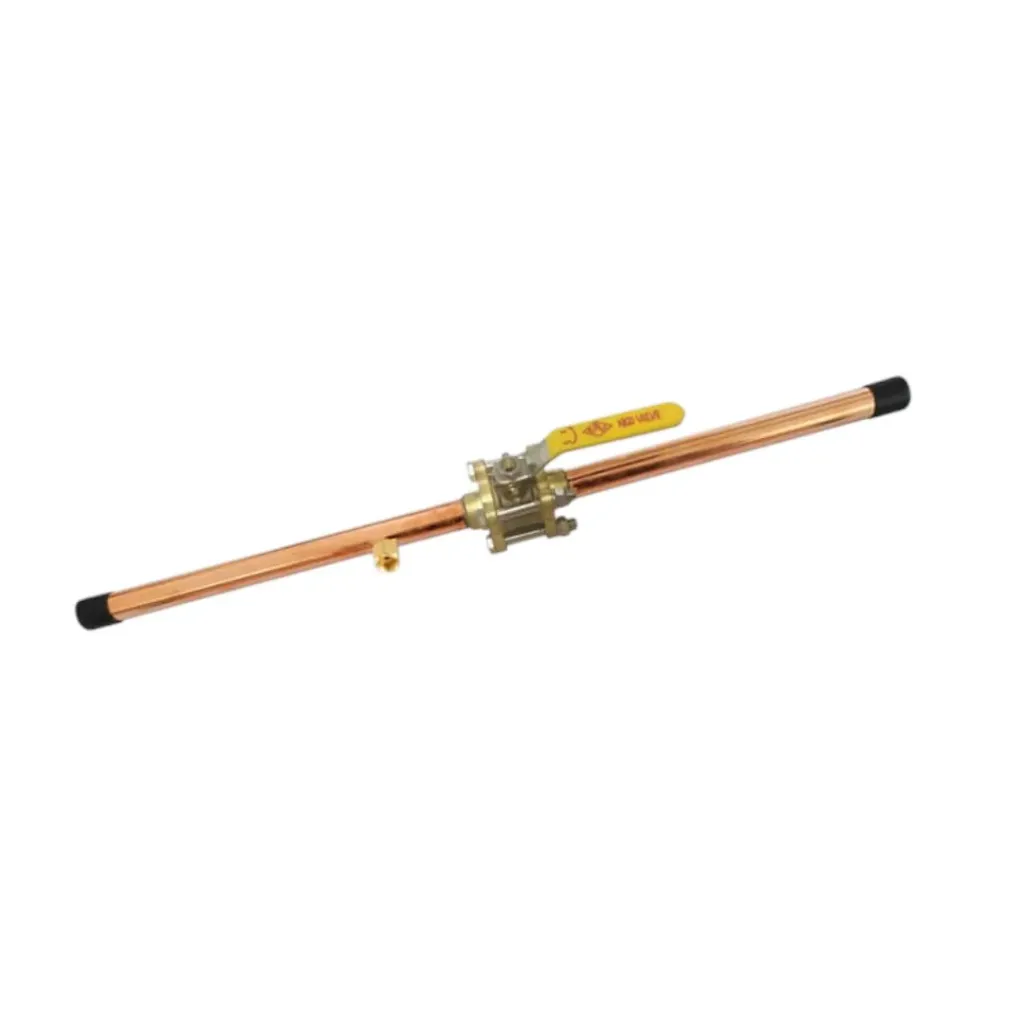

A 15mm medical gas line valve in Kenya is used to isolate and control sections of a medical gas pipeline system. These valves are important components of hospital medical gas infrastructure, allowing specific sections of a pipeline to be isolated during maintenance, repair, testing or other service activities.
The 15mm oxygen pipeline valve is designed for appropriately specified medical gas installations and should be selected according to the gas service, pipe size, pressure requirements and applicable medical gas standards. Kenya Ministry of Health specifications specifically list 15mm Medical Gas Line Isolation Valves and require medical gas line isolation valves to conform to HTM 02-01.
A 15mm medical gas line valve is an isolation valve installed within a medical gas pipeline. Its primary purpose is to allow a designated section of the pipeline to be shut off when necessary.
Medical gas isolation valves are commonly used in systems supplying gases such as:
Oxygen
Medical air
Nitrous oxide
Medical vacuum
Other specified medical gases
The exact gas compatibility should always be confirmed for the valve being purchased.
Kenya's medical-gas technical specifications identify 15mm, 22mm, 28mm, 42mm and 54mm medical gas line isolation valve sizes, demonstrating that valve selection is linked to the pipeline size and system design.
A 15mm oxygen pipeline valve in Kenya is an isolation valve used on a compatible oxygen pipeline section.
Medical oxygen pipeline systems require components that are appropriately prepared and compatible with oxygen service. A valve intended for oxygen should therefore not be substituted with an ordinary industrial or plumbing valve without confirmation of suitability.
Specialized medical gas line valves are available with brass valve bodies and copper tube extensions, while some products are supplied pre-piped for connection into medical gas pipeline systems.
Designed for medical gas pipeline applications
Allows isolation of a pipeline section
Supports maintenance and servicing
Can be supplied with medical-gas-compatible connections
Helps integrate with hospital zone valve arrangements
Available in different pipeline sizes
The exact valve specification should match the medical gas system design.
A medical gas pipeline valve in Kenya forms part of the infrastructure used to control gas distribution within hospitals, clinics and other healthcare facilities.
Medical gas pipelines are typically installed using dedicated piping and components rather than general-purpose plumbing fittings. Kenya's government mechanical-works specifications state that medical gas and vacuum services use fixed copper piping and reference standards including BS EN 739 and HTM 02-01 for relevant medical gas service units.
A medical gas pipeline valve can be installed at an appropriate location to isolate a section of the gas distribution network.
Hospital medical gas pipelines
Oxygen distribution systems
Medical air pipelines
Operating theatres
Intensive care units
Emergency departments
Ward areas
Medical gas plant installations
Pipeline maintenance and upgrades
An oxygen gas line valve in Kenya must be suitable for oxygen service and compatible with the medical gas pipeline.
The valve provides an isolation point that allows qualified personnel to shut off gas flow to a designated section when maintenance or repair is required.
For oxygen systems, compatibility is particularly important because oxygen is an oxidizing gas. Specialized medical gas valves may include features and materials intended for oxygen service. For example, GCE's medical-gas line valve range specifies oxygen compatibility and compliance with medical gas pipeline standards for its applicable products.
A medical gas isolation valve in Kenya is used to isolate medical gas supply to a defined pipeline zone or section.
Isolation valves are an important part of medical gas system design because they allow maintenance work to be performed on selected sections without necessarily shutting down the entire facility's gas distribution network.
Depending on the system design, valves may be incorporated into:
Area valve service units
Zone valve boxes
Medical gas pipeline sections
Plant-room distribution systems
Branch pipelines
Hospital extensions and modifications
The appropriate valve location should be determined by the medical gas system design and applicable installation requirements.
Depending on the exact manufacturer and configuration, a 15mm medical gas isolation valve may offer:
15mm nominal connection size
Medical gas pipeline compatibility
Isolation capability
Brass valve construction
Copper tube extensions
Full-port flow path
Gas-specific configuration
Leak-tested construction
Serviceable design
Lockable option on selected models
For example, GCE's medical gas lockable line valve range is available in sizes starting at 15mm and specifies applications for oxygen, medical air, nitrous oxide, vacuum and other medical gases. Its published specifications include a brass housing and copper connections.
Hospitals require reliable isolation points throughout their medical gas distribution systems.
A 15mm medical gas isolation valve for hospitals may be used where the pipeline design calls for a 15mm isolation point. It can allow qualified maintenance personnel to isolate a section of the system during planned servicing or repairs.
Kenya's medical-gas specifications explicitly include 15mm medical gas line isolation valves and call for conformity to HTM 02-01.
The actual valve size should always be confirmed against the engineering drawings and installed pipework.
Medical gas isolation valves are available in several sizes depending on the pipeline design.
These sizes are listed in Kenya Ministry of Health medical-gas specifications.
Important: The correct valve size should be determined from the actual pipe size and system design. Do not select a valve based only on the external diameter of an existing pipe without confirming the connection specification.
A medical gas isolation valve is installed inline with the medical gas pipeline.
When the valve is open, gas can pass through the pipeline. When the valve is closed, the downstream section is isolated from the upstream gas supply.
A simplified arrangement is:
Medical gas source → pipeline → isolation valve → downstream medical gas outlets
This allows a defined section of the system to be shut off during maintenance or other authorized work.
Lockable versions can provide an additional safeguard against unintended operation. Some specialist medical gas line valves are supplied with integral locking mechanisms.
A 15mm medical gas line valve may be used in:
Hospital oxygen pipeline systems
Medical air pipeline systems
Nitrous oxide systems
Medical vacuum systems
ICU installations
Ward medical gas systems
Clinic medical gas systems
Medical gas plant distribution
Pipeline extensions
Medical gas maintenance projects
The gas service must be confirmed before purchasing because a valve's suitability can depend on its specific materials, preparation and configuration.
Verify that the pipeline requires a 15mm valve. Medical gas pipe sizing should be confirmed from the engineering drawings or installed system specification.
Specify whether the valve is for:
Vacuum
Another approved medical gas
For oxygen service, confirm that the valve is specifically suitable for oxygen and has been appropriately prepared for the application.
Confirm whether the valve is supplied with copper tube extensions, compression connections or another approved connection configuration.
The valve's working-pressure specification must be suitable for the medical gas pipeline.
Where unauthorized operation is a concern, a lockable isolation valve may be appropriate.
For hospital procurement, request the manufacturer's technical documentation and evidence of applicable conformity or standards.
A standard plumbing valve should not be substituted for a medical gas isolation valve simply because both have a similar nominal size.
Medical gas isolation valves should be installed, tested and commissioned by qualified medical gas personnel.
Important precautions include:
Confirm the correct gas before installation.
Confirm the pipeline size and connection.
Use a valve specifically rated for the intended medical gas.
Keep oxygen-service components free from oil and grease contamination.
Do not modify the valve or its connections.
Pressure-test the system according to the applicable installation procedure.
Check for leaks after installation.
Label the valve and gas service appropriately.
Ensure the valve is accessible for authorized maintenance.
Follow the manufacturer's installation instructions.
Observe the applicable medical gas standards and facility procedures.
Kenya's mechanical-works specifications require medical gas systems to use specified fixed copper piping and appropriate medical gas service units, while specialist valve manufacturers publish medical-gas-specific pressure and standards information for their products.
Note: Exact working pressure, dimensions, connection configuration, materials and certifications vary by manufacturer and model. Confirm the product datasheet before procurement.
A 15mm medical gas line valve is an isolation valve designed for a 15mm medical gas pipeline application. It allows a designated section of the pipeline to be isolated.
It can be, provided the specific valve is manufactured, prepared and rated for medical oxygen service. Do not assume that every 15mm valve is oxygen-compatible.
It is used to isolate a section of a medical gas pipeline during maintenance, repair, testing or other authorized work.
Depending on the specific valve, medical gas isolation valves may be available for oxygen, medical air, nitrous oxide, vacuum and other medical gases. The manufacturer's gas compatibility must be confirmed.
Kenya Ministry of Health specifications specifically list medical gas line isolation valves conforming to HTM 02-01. Other applicable standards can depend on the complete medical gas system and product.
It is not recommended to assume that a general plumbing valve is suitable for medical oxygen. Medical gas valves have specific requirements for gas compatibility, cleanliness, connections and system integration.
Yes. Specialist medical gas line valves are available in lockable configurations. For example, GCE lists an integral locking mechanism on its medical gas lockable line valve range.
The price depends on the manufacturer, valve configuration, gas compatibility, connection type and whether copper tails or other components are included. A reliable current Kenya retail price for a specific 15mm medical gas isolation valve was not verified, so quotation is recommended.
For a 15mm medical gas line valve in Kenya, provide the supplier with the required gas, pipe size, connection specification and application.
For oxygen pipeline installations, specify that the valve is required for medical oxygen service and request confirmation of oxygen compatibility, applicable standards and technical documentation.
For hospital projects, the valve should be selected and installed as part of the overall medical gas pipeline design by appropriately qualified personnel.
