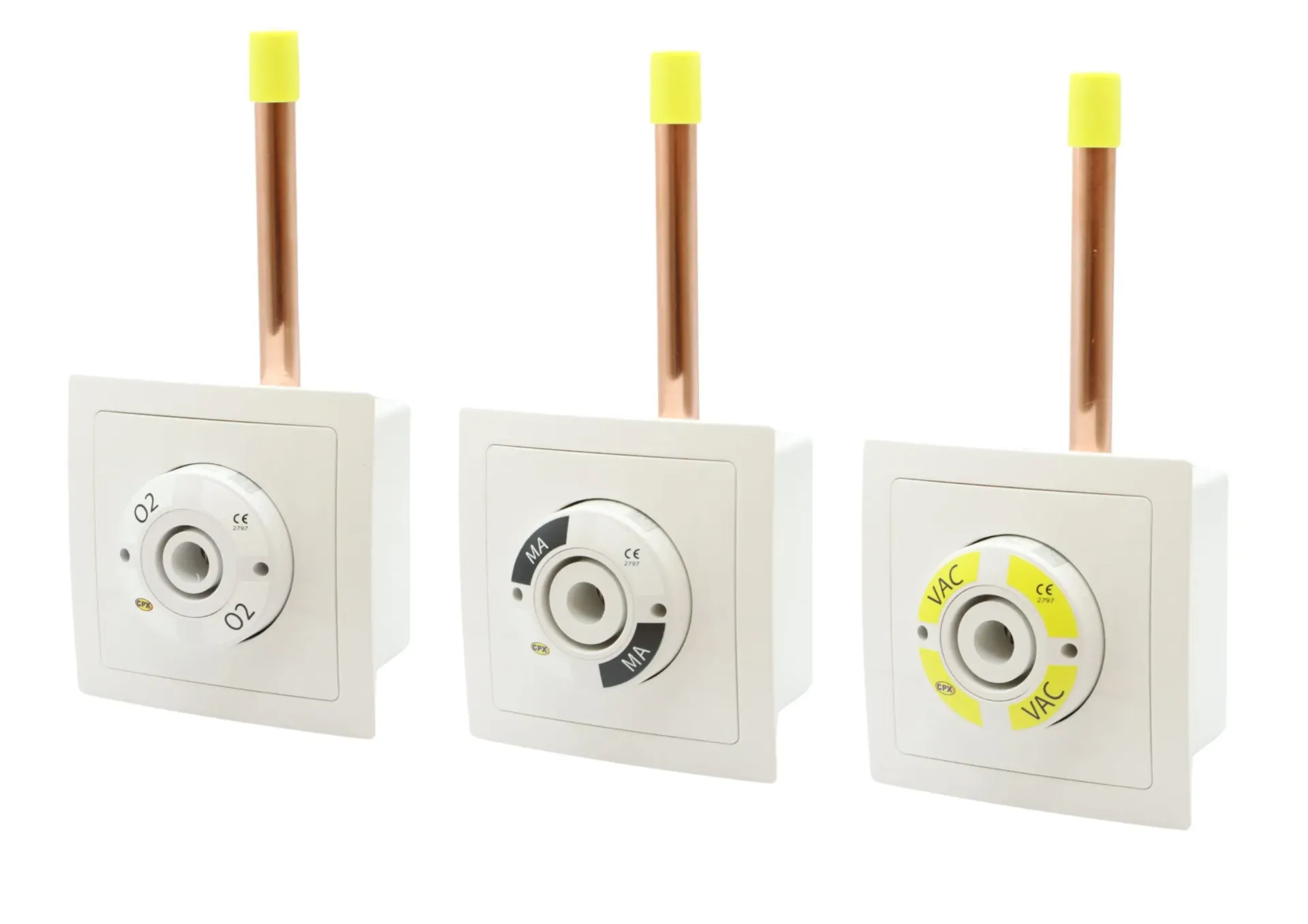

CPX UK Oxygen Terminal Outlet – Wall-Mounted Medical Gas Outlet for MGPS

The CPX UK Oxygen Terminal Outlet – Wall Mount is a medical gas terminal unit designed to provide a secure connection point between a hospital's centralized Medical Gas Pipeline System (MGPS) and oxygen-delivery equipment.

Manufactured by Precision UK, CPX terminal units are designed and manufactured in the UK. Wall-mounted versions can be configured for flush or surface installation.

Designed for Medical Oxygen Delivery

The oxygen terminal outlet allows compatible oxygen probes to be connected to the central pipeline supply. The CPX design incorporates a check-valve mechanism that permits gas flow when the correct probe is connected and automatically shuts off the supply when the probe is disconnected.

The first-fix assembly can incorporate a 12mm copper stub pipe for connection to the medical gas pipeline.

Key Features

• CPX® brand by Precision UK
• Designed specifically for medical oxygen
• Wall-mounted configuration
• Flush or surface mounting options
• Gas-specific connection to help prevent incorrect probe connection
• Automatic shut-off when the oxygen probe is disconnected
• First-fix, second-fix and check-valve assembly
• 12mm copper stub pipe option for MGPS connection
• Designed for secure and convenient probe connection
• Manufactured in the UK
• Designed to meet BS EN 9170-1 requirements for medical gas terminal units

Common Applications

Suitable for oxygen outlet points in hospitals, operating theatres, ICUs, HDUs, recovery rooms, maternity units, emergency departments, wards and other clinical areas connected to a centralized medical oxygen pipeline.
