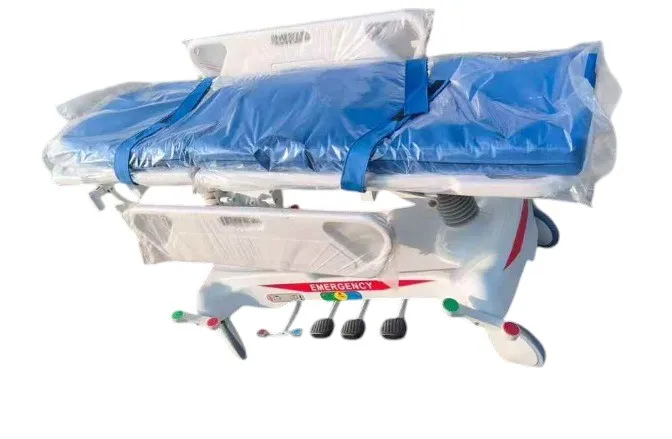

A Huntleigh-type hydraulic patient trolley is a hospital patient transfer trolley designed for moving patients while providing adjustable positioning and improved handling for healthcare staff.
The term Huntleigh type is commonly used in the market to describe a hospital stretcher trolley with features associated with higher-specification hydraulic patient transfer systems, such as hydraulic height adjustment, adjustable backrest, side rails, central braking and large castors.
These trolleys are suitable for hospitals, emergency departments, treatment areas, theatres, recovery units and other healthcare environments where patients need to be transferred safely while lying down.
The exact features vary by manufacturer and model, so buyers should compare the actual specifications rather than assuming that every Huntleigh-type trolley has the same configuration.
The Huntleigh type hydraulic patient trolley price in Kenya depends on the hydraulic system, frame construction, positioning functions, castors, side rails, accessories and overall specification.
A current Nairobi listing for a hydraulic patient stretcher described as Hunt Leigh type is priced at KSh 110,000. The listing describes smooth height adjustment, lockable wheels, safety side rails, sturdy construction and a mattress.
A higher-specification hydraulic emergency patient stretcher is currently listed at KSh 212,000, with hydraulic height adjustment, adjustable backrest, foldable side rails, central locking and other emergency-transfer features.
These are current listing examples rather than a fixed nationwide price. The exact quotation should be based on the required trolley specification.
If you want to buy a hydraulic patient stretcher trolley in Nairobi, compare the equipment according to its intended clinical application.
Important features to confirm include:
Hydraulic height adjustment
Backrest adjustment
Trendelenburg positioning
Anti-Trendelenburg positioning
Side rails
Central-locking castors
Directional castor
Mattress
IV pole
Oxygen-cylinder holder
CPR function
Maximum safe working load
Overall dimensions
Nairobi has multiple medical-equipment suppliers offering hospital stretchers and patient transfer equipment. For institutional procurement, request a written quotation that specifies the exact model, included accessories, warranty, delivery and installation arrangements.
A hydraulic stretcher trolley for sale in Kenya uses a hydraulic mechanism to raise or lower the patient platform.
Hydraulic adjustment can make it easier for healthcare staff to position the trolley at an appropriate working height during patient transfer and care.
A Kenya government tender specification for patient stretchers describes a hydraulic stretcher with:
Adjustable backrest from 0–75°
Leg adjustment from 0–45°
Height adjustment of approximately 300 mm
Trendelenburg adjustment
Gas-spring backrest
Hydraulic adjustment for other functions
Collapsible side rails
Mechanical CPR position
IV drip rack
These specifications are procurement requirements for a particular tender and should not be treated as universal specifications for every hydraulic trolley.
A Huntleigh type stretcher trolley in Kenya is generally sought by hospitals looking for a more advanced patient transfer trolley rather than a basic fixed-height stretcher.
The main advantages of this type of design can include:
Easier height adjustment
Better patient positioning
Improved manoeuvrability
Secure side rails
Central wheel locking
Easier patient transfer between surfaces
Reduced need to manually lift the trolley platform
The actual mechanism may differ between models. Some use hydraulic pumps, while other adjustment functions may use gas springs or mechanical mechanisms.
An emergency transfer trolley is designed for moving patients through emergency and acute-care areas.
Current Kenya examples show a significant price difference between basic hospital stretchers and hydraulic emergency models.
A current hydraulic emergency patient stretcher is listed at KSh 212,000. The listed configuration includes hydraulic height adjustment, adjustable backrest, foldable side guardrails, heavy-duty wheels with central locking, and attachments for an oxygen cylinder and IV pole.
For a hospital requiring an emergency transfer trolley, the quotation should clearly state whether these accessories and functions are included.
One of the main reasons facilities choose a hydraulic trolley is adjustable height.
Height adjustment can help staff position the trolley appropriately for:
Patient transfers
Clinical examination
Emergency procedures
Movement between beds
Theatre transfer
Recovery areas
Diagnostic procedures
A current hydraulic transfer stretcher available from a Kenya supplier specifies hydraulic height adjustment through pedals on both sides. The published specification gives a height range of 460–810 mm and a 180 kg loading capacity for that particular model.
Another published Kenya tender specification describes a hydraulic patient transport stretcher with a 540–840 mm height range.
These ranges are model-specific and should not be assumed for every hydraulic patient trolley.
Side rails are an important feature on many hospital transfer trolleys.
They provide a physical barrier alongside the patient platform during movement and can be folded or lowered when transferring the patient.
Depending on the model, side rails may be:
Collapsible
Foldable
Detachable
ABS
Metal
Chromed
A Kenya tender specification for a hydraulic patient stretcher calls for collapsible chromed side rails, while another hydraulic transfer trolley uses collapsible aluminium-alloy railings.
Always check that the side rails lock securely and operate according to the manufacturer's instructions.
Central-locking castors allow several wheels to be controlled through a central braking mechanism.
This can make it easier for staff to secure the trolley before patient transfer or clinical procedures.
Published Kenya specifications for hydraulic transfer stretchers include central braking and central-locking castors.
When comparing models, check whether the trolley has:
Central locking
Individual wheel brakes
Directional steering
Fifth-wheel steering
Large-diameter castors
These features vary by model.
Some advanced hydraulic patient trolleys provide Trendelenburg and reverse/anti-Trendelenburg positioning.
These functions allow the patient platform to be tilted according to the trolley's design and the clinical procedure.
A current hydraulic transfer stretcher specification gives Trendelenburg and anti-Trendelenburg adjustment of at least 12°.
A Kenyan government tender specification similarly includes Trendelenburg adjustment on its hydraulic patient stretcher requirements.
The exact permitted angles and operating mechanism should always be confirmed for the selected model.
Some emergency and hospital stretcher trolleys include a CPR function that allows the back section to be returned to a flat position.
The availability and mechanism of this feature vary between models.
A current hydraulic transfer trolley specification includes a CPR handle, while a Kenya procurement specification calls for mechanical CPR positioning.
Facilities purchasing for emergency or critical-care areas should confirm the exact CPR mechanism before ordering.
An IV pole can be useful when patients need intravenous therapy during transfer.
Some hydraulic trolley models include an IV pole as standard, while others provide it as an optional accessory.
For example, the Kenya tender specification for a hydraulic patient stretcher includes a stainless-steel telescopic drip rack.
When requesting a quotation, specify whether the IV pole should be included.
A hydraulic patient trolley can be used in several hospital departments.
Used for transferring patients between casualty, treatment and observation areas.
Suitable models can assist with moving patients who require attached monitoring or other clinical equipment.
Can be used for patient movement to and from theatre and recovery areas.
A suitable trolley can help transfer patients between wards and diagnostic departments.
Hydraulic transfer trolleys may be used for movement between maternity assessment, delivery and recovery areas where appropriate.
Adjustable positioning can be useful when transferring patients between theatre and recovery areas.
Load capacity is an important specification when selecting a patient trolley.
The capacity should come directly from the manufacturer or supplier's technical specification.
For example:
One current hydraulic transfer stretcher specifies 180 kg loading capacity.
Another hydraulic transfer stretcher specification gives a 250 kg maximum static safe load and 135 kg maximum dynamic safe load.
A hydraulic emergency stretcher listing specifies a capacity of up to 250 kg for its particular model.
These values are not interchangeable. Buyers should distinguish between static and dynamic load ratings and confirm the exact manufacturer's specification.
Hydraulic patient trolleys may use combinations of:
Powder-coated steel
Stainless steel
Aluminium
Polypropylene or other polymer components
For example, one hydraulic transfer stretcher uses a cold-rolled steel tube frame and PP bed base, while a government specification calls for an epoxy powder-coated framework with metal head and foot sections.
If stainless steel construction is required, specify the required material and grade in the procurement documents rather than assuming that a trolley described as hospital-grade is entirely stainless steel.
A hydraulic trolley generally provides more positioning and adjustment functions than a basic fixed-height patient stretcher.
The exact features depend on the model and should be confirmed before purchase.
Before buying a hydraulic patient trolley in Kenya, consider:
Confirm whether height adjustment is operated using a foot pedal, hydraulic pump or another mechanism.
Check the minimum and maximum platform height.
Confirm the backrest adjustment range and whether it uses a gas spring or hydraulic mechanism.
If required, confirm the available Trendelenburg and reverse/anti-Trendelenburg angles.
Check whether the rails are foldable, collapsible, detachable or fixed.
Confirm the diameter, braking mechanism and whether a directional castor or fifth wheel is included.
Confirm both static and dynamic ratings where applicable.
For emergency departments, check whether a mechanical CPR release or equivalent function is included.
Confirm whether the quotation includes the mattress, IV pole, oxygen-cylinder holder and other accessories.
For hospital procurement, verify warranty, installation, training, spare parts and after-sales support.
Only trained healthcare personnel should operate a hydraulic patient stretcher trolley.
A general workflow is:
Inspect the trolley before use.
Check the hydraulic system, castors and brakes.
Confirm that side rails are functioning correctly.
Position the trolley beside the patient.
Engage the brakes before transferring the patient.
Transfer the patient according to the facility's approved procedure.
Raise and lower the trolley only using the manufacturer's controls.
Secure side rails where required.
Check IV lines, oxygen tubing and monitoring cables before movement.
Release the brakes before moving the trolley.
Move slowly and avoid sudden stops.
Apply the brakes at the destination.
Clean the trolley according to the facility's infection-control procedure.
Always follow the manufacturer's instructions and the healthcare facility's patient-transfer protocols.
Regular inspection is important for hydraulic patient trolleys.
Check:
Hydraulic pedals and pump
Hydraulic fluid/system according to manufacturer requirements
Castor wheels
Central brakes
Backrest mechanism
CPR mechanism
Frame and welds
Fasteners
A trolley with hydraulic leakage, defective brakes, unstable side rails, damaged castors or structural damage should be removed from service until appropriately inspected and repaired.
A current Nairobi listing for a hydraulic patient stretcher described as Hunt Leigh type is KSh 110,000. Higher-specification hydraulic emergency stretchers can cost more; one current Kenya listing is KSh 212,000.
A Huntleigh-type stretcher trolley generally refers to a higher-specification hospital transfer trolley with features such as hydraulic height adjustment, adjustable positioning, side rails, large castors and braking. The exact specification depends on the manufacturer and model.
Hydraulic patient stretchers are available from medical-equipment suppliers in Nairobi. Before purchasing, confirm the exact model, hydraulic functions, load capacity, accessories, warranty and delivery arrangements.
Current examples include KSh 110,000 for a Huntleigh-type hydraulic patient stretcher and KSh 212,000 for a higher-specification hydraulic emergency patient stretcher.
Yes, hydraulic patient trolleys are designed to provide height adjustment. The exact range varies by model. Published Kenya specifications include examples such as 460–810 mm and 540–840 mm.
Selected hydraulic stretcher trolleys provide Trendelenburg and reverse/anti-Trendelenburg adjustment. The exact angle depends on the model.
Some models include a mattress, while others list it as an optional accessory. Confirm the exact quotation before ordering. One current Huntleigh-type Nairobi listing describes a comfortable mattress as part of the product.
Choose the capacity according to the patient population and the manufacturer's stated safe working load. Current hydraulic models reviewed include examples of 180 kg and 250 kg ratings, but these specifications are model-specific.
Not automatically. A hospital hydraulic stretcher may be designed for internal facility transfer rather than vehicle transport. If ambulance use is required, confirm that the exact model is designed and approved for that application and is compatible with the vehicle.
Specifications should be confirmed against the exact product quotation before purchase.
When requesting a quotation for a Huntleigh type hydraulic patient trolley in Kenya, specify:
Required trolley type
Hydraulic height-adjustment requirement
Minimum and maximum height
Trendelenburg requirement
Side-rail design
Castor and braking system
Required load capacity
Quantity required
Delivery location
Installation requirements
Warranty and after-sales support
For hospitals purchasing multiple units, ask the supplier to state the exact manufacturer/model, technical specifications, included accessories, warranty, delivery terms and applicable taxes.
