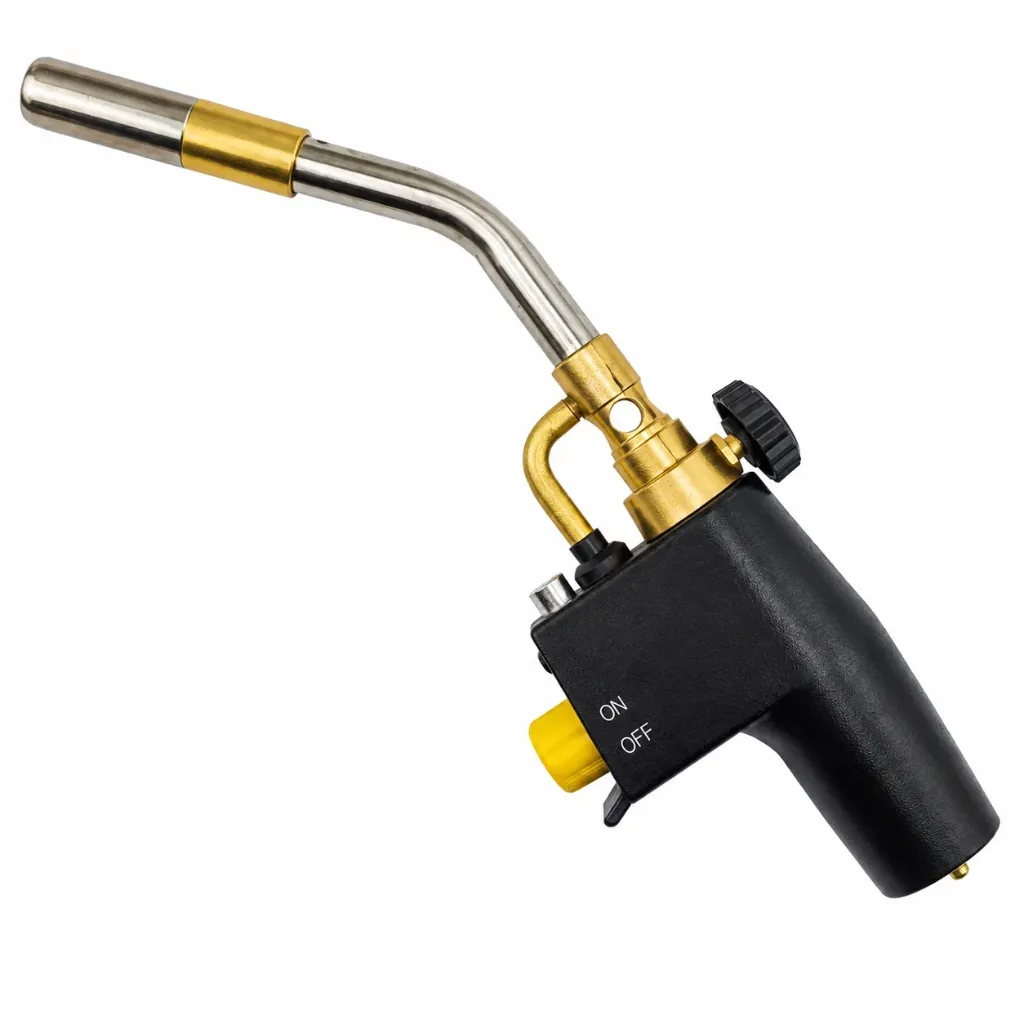

A MAP gas torch is a portable high-temperature heating tool designed for applications such as copper pipe soldering, brazing, heating and general workshop work. MAP-Pro fuel is commonly used where a higher-temperature flame is required than standard propane can provide. Bernzomatic, for example, specifies MAP-Pro fuel for soldering large copper pipes, brazing and heat treating, with an in-air flame temperature of approximately 3,730°F (2,054°C).
MAP gas torches are particularly useful for plumbers, HVAC and refrigeration technicians, copper pipe installers and maintenance professionals.
A MAP gas brazing torch provides a concentrated flame for heating metal components during brazing. Depending on the torch design, MAP-Pro can be used for copper tubing and other metalwork applications.
Professional MAP-Pro torch designs are available with features such as adjustable flame control, trigger ignition, swivel burn tubes and pressure regulation. One professional torch specification lists applications including brazing of pipes up to 1 inch in diameter, as well as soldering and heating.
The appropriate torch should be selected according to the pipe diameter, brazing alloy, fuel system and manufacturer's specified operating conditions.
A high temperature gas torch is useful when ordinary soldering equipment does not provide sufficient heat for the application.
MAP-Pro fuel has a higher in-air flame temperature than standard propane, with manufacturers listing approximately 2,054°C for MAP-Pro fuel.
The actual temperature and heating performance of a torch depend on the fuel, torch design, airflow, operating conditions and application. Therefore, published maximum flame temperatures should not be treated as the temperature reached uniformly throughout the workpiece.
A copper pipe brazing torch is designed to provide concentrated heat around a copper tube and fitting so that the brazing filler can melt and flow into the prepared joint.
MAP-Pro torches are commonly used in plumbing, HVAC and refrigeration applications. Some professional torch systems are specifically designed for copper and aluminium pipe brazing, with models covering different pipe diameters.
For medical gas pipeline work, the torch should only be used as part of an approved installation procedure by appropriately trained personnel. Copper pipe preparation, cleaning, brazing, testing and commissioning all need to comply with the applicable medical gas installation requirements.
A MAP gas soldering torch provides concentrated heat for soldering copper tubing and other suitable metal components.
MAP-Pro is used for soldering applications ranging from smaller copper tubing to larger copper pipes, depending on the torch and fuel system selected.
When soldering copper pipe:
Cut the tubing to the required length.
Clean and prepare the tube and fitting.
Assemble the joint correctly.
Apply the appropriate flux where required.
Heat the joint evenly with the torch.
Apply solder to the heated joint according to the solder manufacturer's instructions.
Allow the joint to cool appropriately.
Inspect the completed connection.
The solder or brazing filler should be selected according to the intended application.
The copper tube soldering torch is useful for plumbers and technicians working with copper tubing.
Its applications can include:
Copper tube soldering
Plumbing installation
HVAC work
Refrigeration work
Copper fitting installation
General heating
Maintenance and repair
Torch capacity varies considerably. Some MAP-Pro torch systems are designed for soldering and brazing smaller tubing, while larger professional systems can handle larger pipe sizes.
Always check the manufacturer's stated pipe-size capacity before using a torch for a particular job.
Depending on the selected MAP gas torch model, features may include:
MAP-Pro/MAP-compatible fuel connection
High-temperature concentrated flame
Adjustable flame control
Manual or trigger-start ignition
Ergonomic torch handle
Portable design
Suitable for copper pipe soldering
Suitable for copper pipe brazing
Heating capability
Suitable for plumbing, HVAC and refrigeration applications
Some models include swivel or adjustable burner tubes
Important: Exact connection type, ignition system, flame temperature, pipe capacity and included accessories are model-dependent and should be confirmed before purchase.
A MAP gas torch can be used for suitable:
Heating and joining copper tubing and fittings during plumbing installation and repair.
MAP-Pro torches are used for copper tubing work in HVAC and refrigeration applications. Professional torch manufacturers specifically list HVAC and plumbing contractors among their intended users.
Providing concentrated heat for brazing appropriately prepared copper pipe and fittings.
Heating copper tube joints for soldering applications.
Suitable torch models can also be used for heating, heat treatment and other workshop applications.
MAP gas torches may form part of the equipment used by trained technicians during copper pipe brazing and related work, but the torch alone does not make an installation suitable for medical gas service.
Medical gas pipeline installations require appropriate copper pipe, fittings, brazing materials, cleaning procedures, testing and commissioning. For hospital oxygen and other medical gas systems, installation should be carried out by qualified personnel using procedures appropriate to the specific gas service.
This is particularly important when working with oxygen systems because oxygen supports combustion and requires strict control of contamination, ignition sources and compatible materials.
Always follow the instructions supplied with the exact torch and gas cylinder.
A general operating sequence is:
Inspect the torch, hose or connection and fuel cylinder.
Confirm that the torch and fuel connection are compatible.
Position the cylinder appropriately according to the manufacturer's instructions.
Check connections for leaks using an appropriate leak-checking procedure.
Keep combustible materials away from the work area.
Ignite the torch using the specified ignition system.
Adjust the flame to the required setting.
Heat the workpiece evenly rather than concentrating excessive heat in one location.
Complete the soldering or brazing operation according to the applicable procedure.
Turn off the torch and fuel supply as instructed.
Allow heated components to cool safely.
MAP-Pro cylinder manufacturers advise keeping cylinders upright during use and checking connections for leaks according to the cylinder instructions.
A MAP gas torch produces an open, high-temperature flame and should only be operated by people familiar with gas-burning equipment.
Important precautions include:
Wear appropriate eye and hand protection.
Keep the torch away from combustible materials.
Work in a properly ventilated area.
Inspect hoses and connections before use.
Check for gas leaks before ignition.
Never use a damaged torch or cylinder connection.
Do not exceed the manufacturer's specified operating pressure.
Keep the gas cylinder upright where required.
Allow hot pipes and fittings to cool before handling.
Keep appropriate fire-safety equipment nearby.
Follow the fuel manufacturer's safety instructions.
MAP-Pro cylinders should be stored away from heat, sparks and flames and in a well-ventilated location.
Current Kenya prices vary according to torch design and included accessories.
At the time checked, a MAPP gas brazing torch from Finstar Industrial Systems was listed at KSh 3,500, reduced from KSh 4,400. The listing describes the torch as suitable for HVAC, plumbing, refrigeration and metalwork applications.
A separate Nairobi listing showed a MAP gas torch suitable for refrigeration, air conditioning, plumbing, copper pipe brazing and soldering at KSh 3,000, although marketplace prices and availability can change.
These prices are examples for specific torch models and should not be treated as a universal MAP gas torch price in Kenya.
When selecting a MAP gas brazing torch, consider:
Fuel type and cylinder compatibility
Connection/thread standard
Pipe diameter to be brazed
Required heat output
Flame pattern
Ignition system
Torch weight
Hose requirements
Replacement parts and tips
Intended soldering or brazing application
Manufacturer operating specifications
For copper pipe work, choose a torch whose specified capacity matches the tubing and joint size.
A MAP gas torch is a portable gas-burning torch designed to produce a concentrated high-temperature flame for applications such as soldering, brazing, heating and metalwork.
It is used to heat suitable metal joints for brazing and can be used for copper pipe work, HVAC, refrigeration, plumbing and other appropriate applications.
Yes. MAP-Pro fuel is marketed for brazing and soldering applications, including copper pipe work. The torch must have sufficient heat output for the specific pipe and brazing application.
The published flame temperature depends on the fuel and torch configuration. MAP-Pro fuel is commonly listed at approximately 2,054°C (3,730°F) in air.
Yes. MAP-Pro hand torches are used for copper pipe soldering, with the appropriate torch selected according to the tube size and soldering application.
A suitable torch can be part of the tools used for copper brazing during medical gas pipeline installation, but the complete installation must follow the applicable medical gas requirements. Such work should be performed by appropriately trained professionals.
This depends on the product configuration. Some torches are sold separately from MAP-Pro cylinders, while torch kits may include additional accessories. For example, Ambro Controls lists its MAP-Pro torch and cylinder as separate products.
The capacity depends on the torch. One professional MAP-Pro torch is specified for brazing pipes up to 1 inch, while other torch systems have different capacities.
Note: Exact specifications should be confirmed against the particular MAP gas torch model being supplied.
