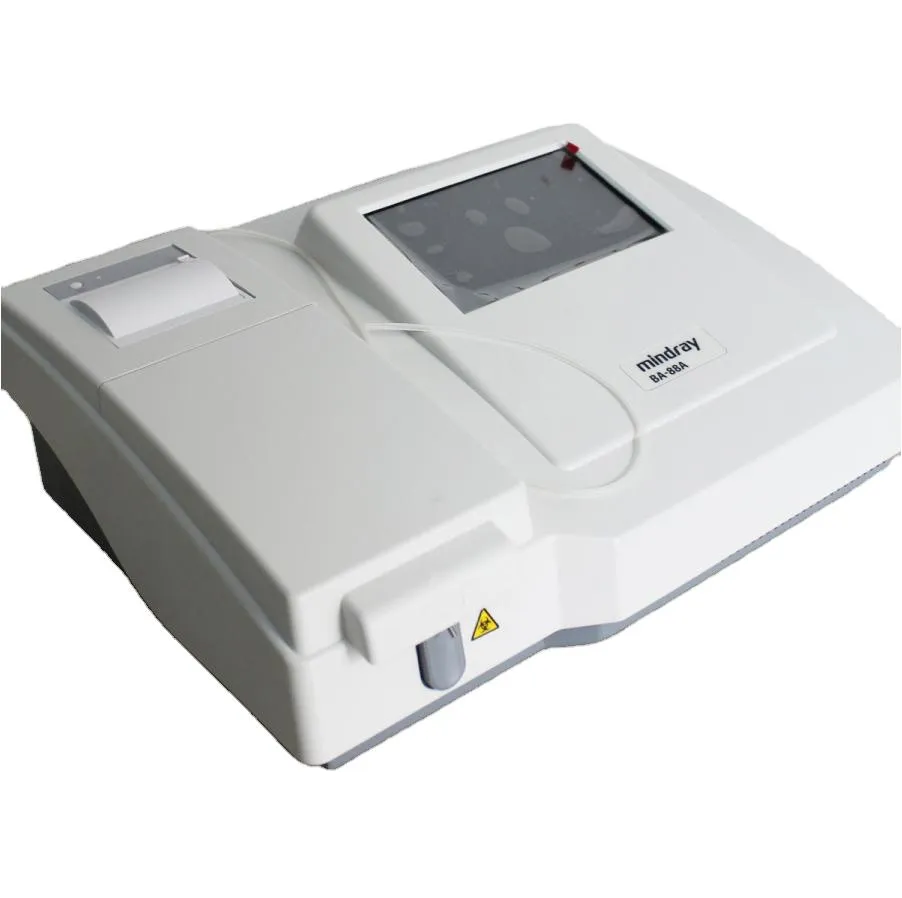

Mindray BA-88A Semi-Auto Chemistry Analyzer – Semi-Automated Clinical Chemistry Analyzer

The Mindray BA-88A Semi-Auto Chemistry Analyzer is a reliable, compact, and user-friendly semi-automated clinical chemistry analyzer designed for small to medium-sized laboratories, hospitals, clinics, and diagnostic centers. Featuring a 7-inch TFT touch screen, dual testing modes (flow cell and cuvette), and support for multiple analytical methods, the BA-88A delivers accurate and efficient biochemical testing for routine clinical diagnostics. It can store over 3,000 patient results and supports up to 200 programmable test parameters, making it ideal for daily laboratory workflows.

Key Features

• 7.0-inch TFT touch screen with pop-up keypad
• Supports Flow Cell and Cuvette testing modes
• Four analytical methods:
  • Endpoint
  • Fixed-Time
  • Kinetic
  • Absorbance
• Bi-chromatic testing capability
• Up to 200 programmable test parameters
• Built-in thermal printer
• External keyboard and mouse support via USB
• Stores over 3,000 patient results and 1,000 QC results
• Real-time reaction curve display
• Multi-language operating software
• User-friendly interface with simple parameter setup

Benefits

• Delivers accurate and reproducible chemistry test results
• Easy to operate with an intuitive touchscreen interface
• Compact bench-top design suitable for laboratories with limited space
• Supports a broad range of routine clinical chemistry assays
• Flexible testing using either flow cell or cuvette mode
• Efficient data storage and result management
• Low maintenance with easy lamp replacement
• Ideal for routine biochemical testing in healthcare laboratories

Applications

Suitable for:

• Hospital laboratories
• Clinical laboratories
• Diagnostic centers
• Private laboratories
• Medical research institutions
• Veterinary laboratories

Common tests include:

• Liver Function Tests (ALT, AST, ALP, GGT)
• Kidney Function Tests (Creatinine, Urea, Uric Acid)
• Lipid Profile
• Blood Glucose
• Total Protein & Albumin
• Bilirubin
• Amylase
• Electrolytes (method dependent)
• Immunoturbidimetric assays

Specifications

• Product Name: Mindray BA-88A Semi-Auto Chemistry Analyzer
• Type: Semi-Automatic Clinical Chemistry Analyzer
• Display: 7-inch TFT Touch Screen
• Testing Modes: Flow Cell and Cuvette
• Analysis Methods: Endpoint, Fixed-Time, Kinetic, Absorbance, Turbidimetry
• Wavelength Range: 340–670 nm (8-position filter wheel)
• Photometric Range: 0–3.5 Abs
• Light Source: Tungsten-Halogen Lamp (6V/10W)
• Flow Cell Volume: 32 µL
• Aspiration Volume: 200–9000 µL
• Temperature Control: Ambient, 25°C, 30°C, and 37°C
• Data Storage: >3,000 sample results and >1,000 QC results
• Printer: Built-in Thermal Printer
• Connectivity: USB and RS-232
• Dimensions: 430 × 360 × 170 mm
• Weight: Approximately 6.8 kg
• Power Supply: AC 100–240 V, 50/60 Hz
