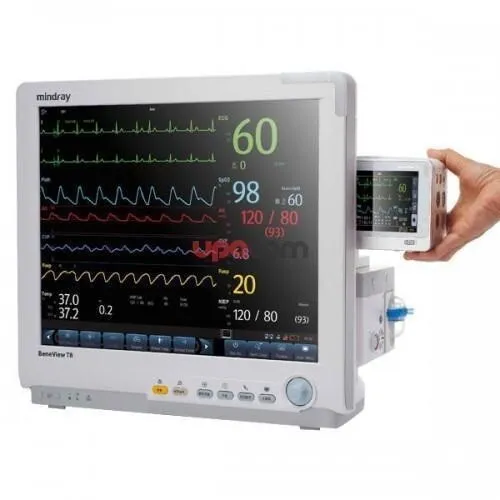

FULL TECHNICAL SPECIFICATIONS (ICU / OT / CCU Modular Monitor)

DISPLAY

• Size: 17" / 19" high-resolution TFT LCD

• Resolution: 1280 × 1024

• Multi-waveform display: Up to 12 waveforms

• Touchscreen (optional depending on configuration)

STANDARD PARAMETERS

• ECG / HR

• SpO₂ (Mindray / Masimo / Nellcor)

• NIBP

• RESP

• TEMP

• PR

MODULAR PARAMETERS (Optional)

• IBP (up to 4 channels)

• EtCO₂ (Mainstream / Sidestream)

• Multi-Gas (AG): CO₂, N₂O, O₂, Halothane, Isoflurane, Enflurane, Sevoflurane, Desflurane

• Cardiac Output (C.O.)

• EEG/BIS Module

• Multi-lead ECG analysis (12-lead)

ECG

• Leads: 3/5/12-lead

• HR Range: 15–300 bpm

• ST analysis: Yes

• Arrhythmia detection: Yes

• Pacemaker detection: Yes

SpO₂

• Range: 0–100%

• Sensitivity: Works under low perfusion

• Pleth waveform: Yes

• Averaging: Configurable

NIBP

• Method: Oscillometric

• Modes: Manual / Auto / STAT

• Measurement range: Sys 40–270 mmHg, Dia 10–200 mmHg

RESPIRATION

• Method: Thoracic impedance

• Range: 0–150 rpm

TEMPERATURE

• Channels: Dual T1/T2

• Range: 0–50°C

• Accuracy: ±0.1°C

CONNECTIVITY

• LAN, WiFi (optional), HL7

• Nurse-call port

• USB ports

• RS-232

BATTERY

• Built-in lithium battery

• Backup: 2–4 hours

STORAGE

• Trend storage: up to 240 hours

• Full disclosure: up to 120 hours

APPLICATIONS

ICU, CCU, OT, HDU, NICU, high-acuity care.
