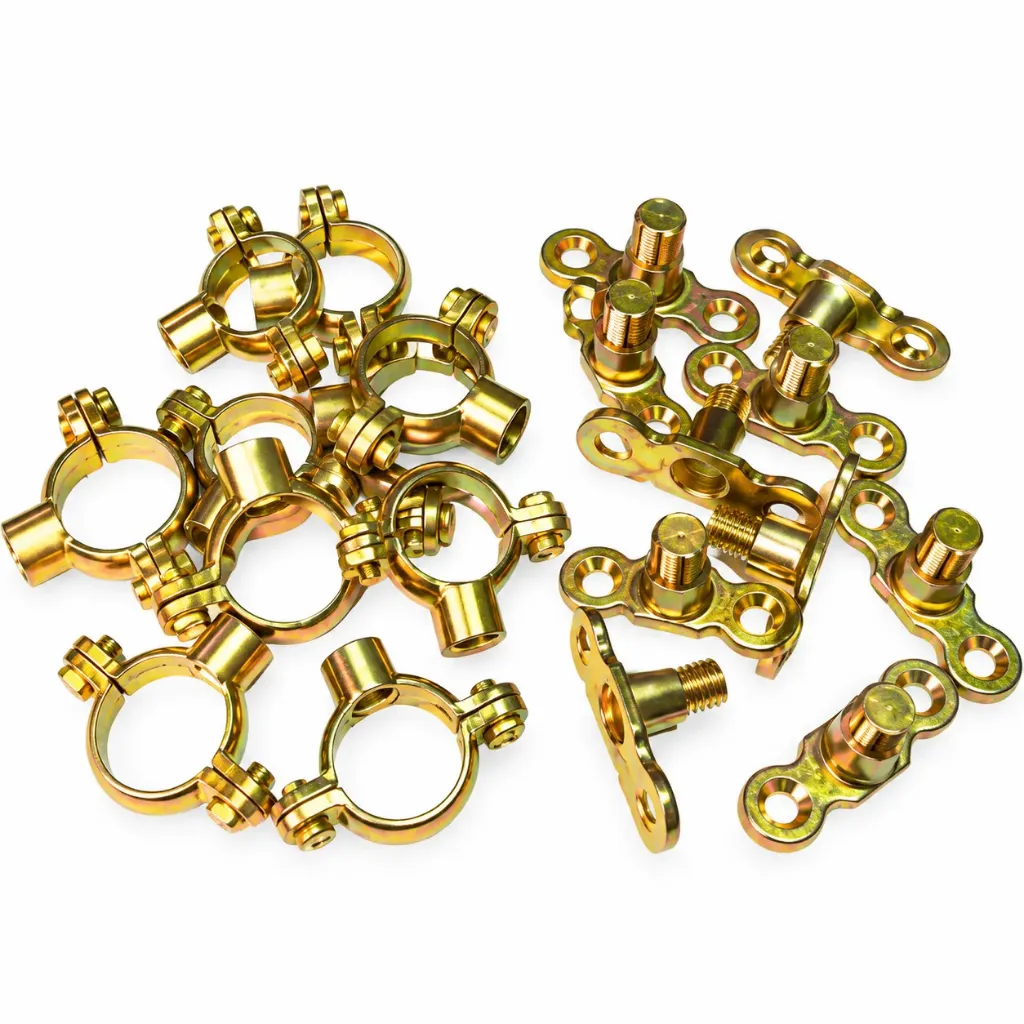

Munsen ring pipe support is a mechanical pipe-support solution used to secure copper tubing to walls, ceilings and other suitable building structures. The ring holds the pipe in position while the associated clamp, backplate or threaded fixing provides the connection to the supporting structure.
Munsen rings are available in different sizes to match different tube outside diameters. Common sizes include 15mm, 22mm and 28mm, among others.
For medical gas pipeline installations, appropriately selected pipe supports help maintain pipe alignment and provide the required mechanical support throughout the installation.
A medical gas pipe support bracket is used to secure copper medical gas tubing as part of a Medical Gas Pipeline System (MGPS).
Medical gas copper pipe must be properly supported to help prevent excessive movement, sagging or distortion. GCE Healthcare documentation states that medical gas pipeline support should be provided at sufficient intervals to prevent sagging or distortion.
Munsen rings can form part of a complete support assembly together with:
Threaded rods
Backplates
Stud connectors
Hospital brackets
Clamps
Appropriate structural fixings
The correct support arrangement should be selected according to the pipe diameter, installation orientation, building structure and applicable project requirements.
Munsen ring clamps for copper pipes are designed to hold copper tubing securely in position.
The two-piece design used in many Munsen ring systems allows the pipe to be enclosed and supported while the ring is attached to an appropriate threaded support or bracket. Brass Munsen rings are available in sizes including 15mm, 22mm, 28mm, 35mm and 42mm.
For copper pipe installations, the material and finish of the support should also be considered. Lawton Tubes lists brass Munsen rings and related support components for copper tube installations and notes compatibility with copper tube systems.
Copper pipe support brackets are used to maintain the position of copper tubing in plumbing, mechanical and medical gas installations.
Depending on the system, support assemblies can be wall-mounted, ceiling-mounted or suspended from structural members.
Common components include:
Munsen rings
Brass backplates
Pipe clamps
Saddle clips
Rubber-lined clamps where appropriate
The selected fixing should have sufficient mechanical capacity for the pipe and installation arrangement.
Medical gas copper pipe clamps provide mechanical support for copper tubing used in medical gas pipeline systems.
Medical gas projects in Kenya specifically include Munsen rings with clamps as mounting accessories. For example, a tender document for Kombewa Sub-County Referral Hospital lists both 22mm Munsen rings complete with clamps and 15mm Munsen rings complete with clamps among the medical gas pipeline mounting accessories.
A Murang'a County medical-gas specification likewise lists 22mm Munsen rings complete with clamps alongside 15mm and 22mm plastic wall clamps and other medical gas installation components.
Designed for supporting copper pipework
Available in multiple pipe sizes
Suitable for wall or ceiling support applications
Can be used with threaded rods and backplates
Suitable for copper tubing installations
Useful for medical gas pipeline support systems
Helps maintain pipe alignment
Suitable for hospital infrastructure projects
Available in brass and other configurations depending on model
Compatible support components can be selected for different pipe diameters
Note: Exact material, thread size, finish, pipe diameter and clamp configuration depend on the selected Munsen ring model.
Munsen rings with clamps can be used for:
Supporting copper pipework used for medical oxygen, medical air, vacuum and other applicable medical gas services.
Installing and securing medical gas pipework within hospitals and healthcare facilities.
Supporting copper water-supply and other suitable copper pipe installations.
Supporting appropriate copper tubing used in mechanical service installations.
Securing pipework in commercial, institutional and industrial buildings.
Lawton Tubes identifies Munsen rings and hospital brackets for applications including medical gas systems, HVAC/R pipework, heating and engineering pipework.
A general installation sequence is:
Identify the correct Munsen ring size for the pipe outside diameter.
Determine the required support location according to the project design.
Install the appropriate backplate, threaded rod or structural fixing.
Position the copper pipe in the Munsen ring.
Secure the ring around the pipe.
Tighten the fixing sufficiently to hold the pipe securely without damaging the tubing.
Check the pipe alignment.
Repeat the process at the required support intervals.
Inspect the completed pipe-support arrangement before commissioning.
For medical gas systems, support spacing and installation details should follow the project specification and applicable medical gas standards rather than relying on generic plumbing spacing.
When selecting medical gas copper pipe clamps, consider:
Copper pipe outside diameter
Gas service
Horizontal or vertical installation
Wall or ceiling mounting
Required support spacing
Thread size
Backplate compatibility
Clamp material
Corrosion resistance
Building structure
Applicable medical gas requirements
Munsen ring ranges are available for numerous metric pipe sizes. Lawton Tubes, for example, lists Munsen ring sizes from 12mm to 159mm and hospital bracket sizes from 15mm to 76.1mm.
The exact sizes depend on the supplier and model. Common Munsen ring sizes include:
15mm
22mm
28mm
35mm
42mm
54mm
Larger sizes for larger pipework
Kenyan medical-gas project specifications specifically document 15mm and 22mm Munsen rings complete with clamps, making these important sizes for local MGPS installation projects.
Munsen rings are load-bearing support components and should be fixed to an appropriate structural surface.
When installing them:
Use the correct ring size for the pipe.
Do not overtighten against copper tubing.
Use appropriate structural anchors.
Maintain the specified pipe-support spacing.
Avoid incompatible materials where they could cause corrosion or damage.
Keep medical gas pipework clean during installation.
Follow the project's medical gas installation specification.
Have the completed MGPS inspected and tested by qualified personnel.
For copper installations, material compatibility is important. Lawton Tubes notes that galvanised fixings should not come into direct contact with uninsulated copper or stainless-steel pipework under the cited plumbing installation standard.
The price of Munsen rings with clamps in Kenya varies according to pipe size, material, finish, thread configuration and whether the ring is supplied as a complete support assembly.
Kenyan medical-gas tender documents list Munsen rings with clamps as project mounting accessories but do not establish a universal retail price.
For hospital projects, request pricing based on the exact pipe size—for example, 15mm, 22mm or 28mm—and the required quantity.
Munsen rings are pipe-support components used to secure tubing to walls, ceilings and other supporting structures.
Yes. Munsen rings are used as support components for copper medical gas pipework, provided the selected ring and complete support arrangement are appropriate for the installation. Kenyan medical-gas project specifications specifically include Munsen rings complete with clamps.
Common metric sizes include 15mm, 22mm, 28mm, 35mm and 42mm, with larger sizes also available.
Yes. Brass Munsen rings and related brackets are specifically supplied for copper tube installations.
Both can support pipework, but their construction and mounting arrangements differ. A Munsen ring is commonly used as part of a threaded support/bracket assembly, while pipe clamps are available in various designs, including rubber-lined and unlined versions.
Appropriately specified Munsen rings can be used to support copper oxygen pipeline installations. The support component is only one part of the complete medical gas system, and the entire installation must meet the applicable requirements.
Support spacing depends on pipe diameter, orientation, material and the applicable installation standard or project specification. It should not be assumed to be the same for every medical gas pipe size.
Depending on the installation, Munsen rings may be used with backplates, threaded rods, stud connectors, hospital brackets and other structural fixings.
Important: Confirm the exact Munsen ring diameter, clamp configuration, thread and material before ordering.
