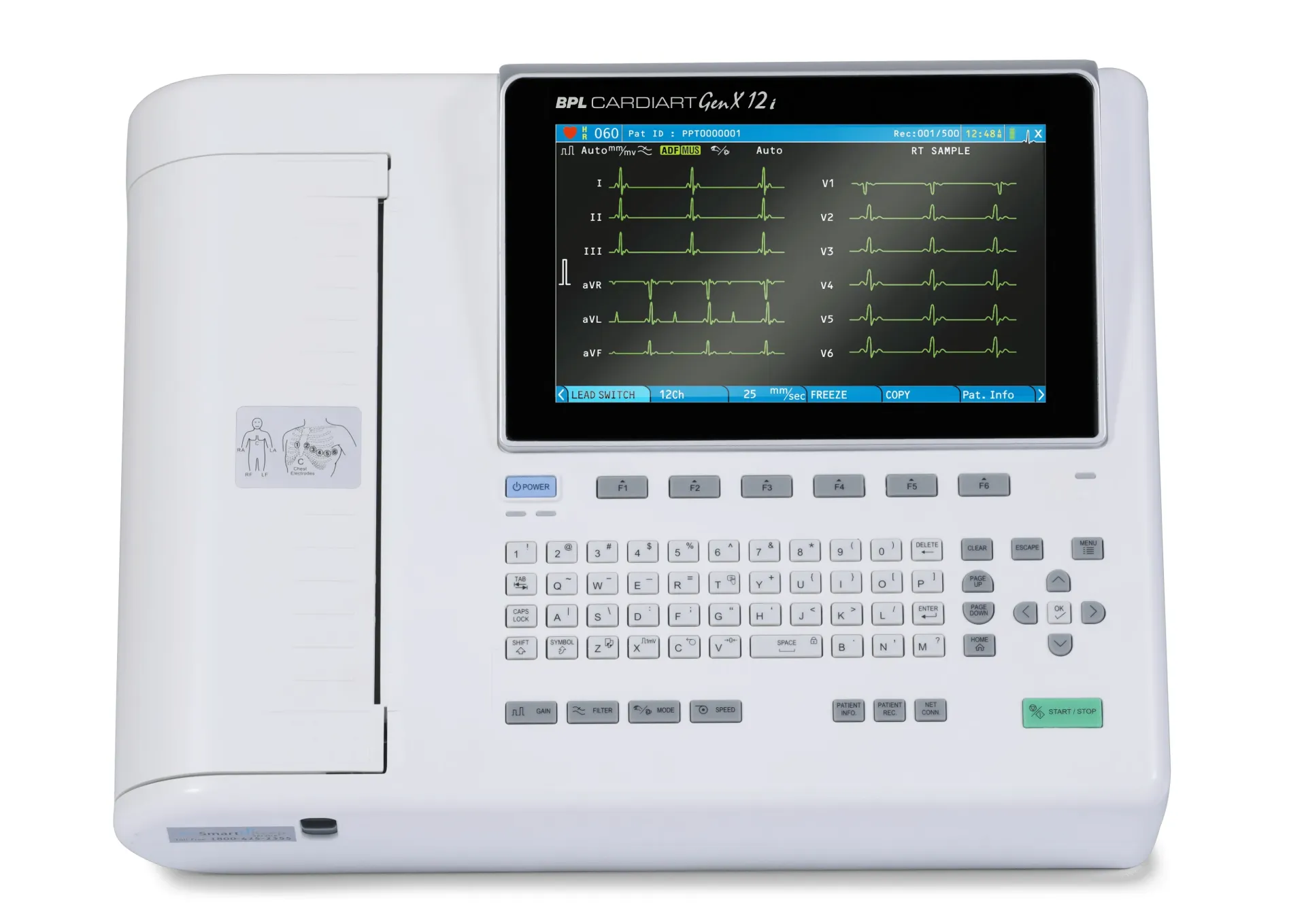

A 12 channel ECG machine is a diagnostic electrocardiograph designed to acquire and record the electrical activity of the heart using a standard 12-lead ECG configuration. It is commonly used in hospitals, clinics, cardiology departments, emergency units and diagnostic centres for routine ECG examinations and cardiac assessment.
A 12-channel system can acquire multiple ECG leads simultaneously and may provide waveform display, automatic measurements, interpretation functions, thermal printing and digital patient-record storage depending on the model. Current Kenyan listings include 12-channel ECG machines with simultaneous 12-lead acquisition, digital displays, printing and data-storage capabilities.
A 12 lead ECG machine records the heart's electrical activity through the standard 12-lead ECG system. Although the terms 12-channel and 12-lead are often used together in product descriptions, they describe related but different aspects of an ECG system: the leads refer to the standard ECG views, while channels describe how signals are acquired, displayed or recorded.
Kenyan healthcare procurement specifications for ECG equipment call for simultaneous acquisition of 12 leads, with features such as adjustable recording speeds, live-data transfer and appropriate ECG accessories.
A 12 channel electrocardiograph combines ECG signal acquisition, display, recording and, depending on the model, analysis and reporting functions in one device.
Typical features may include:
Simultaneous 12-lead ECG acquisition
Colour LCD or touchscreen display
Automatic ECG measurements
Automatic or assisted interpretation
Thermal printer
Internal patient-record storage
Rechargeable battery
USB or other data-transfer interfaces
Multiple recording speeds
ECG waveform review
Patient information entry
Digital export on supported models
For example, one currently listed 12-channel ECG machine in Kenya has a 7-inch colour display, 12-lead simultaneous acquisition, automatic ECG measurement and interpretation, internal storage for up to 250 patient records and USB/RS232 connectivity.
The machine captures ECG information from the standard 12-lead configuration. This provides clinicians with multiple ECG views for assessment of cardiac electrical activity.
Depending on the model, ECG waveforms can be displayed on a colour LCD or touchscreen. Larger displays can make waveform review and patient-data entry more convenient.
Many hospital ECG machines incorporate a thermal printer for producing physical ECG reports. Printing formats, paper sizes and recording speeds vary by model.
Kenyan procurement specifications for 12-lead ECG equipment have included an integrated high-resolution thermal printer or equivalent and support for an external printer.
Selected 12-channel ECG machines include automatic measurement and interpretation software. This can assist clinicians with ECG review, but automated interpretation should be reviewed by an appropriately trained healthcare professional rather than treated as a standalone diagnosis.
Digital storage allows ECG records to be saved for later review on models equipped with internal memory. Storage capacity varies considerably between machines.
For example, one Kenyan-listed 12-channel model specifies storage for up to 250 patient records, while another Meditech listing specifies memory for up to 1,000 cases.
Battery-powered operation can make a 12-channel electrocardiograph useful for bedside examinations, outpatient clinics and situations where mains power is temporarily unavailable. Battery capacity and operating time depend on the specific model.
A 12 channel ECG machine for hospitals can support routine ECG examinations across different departments. Potential applications include:
Cardiology departments
General hospital wards
Outpatient departments
Emergency departments
Intensive care settings where an ECG device is appropriate
Pre-operative assessment
Recovery areas
Diagnostic centres
Clinics
Ambulance and mobile healthcare services
Kenya's Ministry of Health specifications for ECG equipment include simultaneous 12-lead acquisition and installation, testing, user training and commissioning requirements.
Cardiology departments may require ECG equipment with features such as high-quality signal acquisition, multiple recording formats, automatic measurements, patient-data management, digital storage and connectivity.
For larger facilities, it is useful to check whether the ECG machine can integrate with existing hospital information systems or ECG-management software. Connectivity options differ between manufacturers and models.
A compact 12-channel ECG machine can be useful for clinics and diagnostic centres that perform routine cardiac examinations. Important considerations include ease of operation, display size, printing capability, memory capacity, battery operation and availability of replacement ECG cables, electrodes and printer paper.
The 12 channel ECG machine price in Kenya varies according to brand, model, display, printer, storage capacity, connectivity, battery configuration and included accessories.
Current Kenya listings reviewed include:
These are supplier-specific current listing examples rather than a fixed Kenya market price. The exact price should be confirmed based on the selected model, accessories, warranty, installation and requested configuration.
Before purchasing a 12-channel electrocardiograph, check:
12-lead simultaneous acquisition – confirm that the machine supports the required ECG configuration.
Display – consider screen size, resolution and touchscreen functionality.
Printer – check whether a built-in thermal printer is included.
ECG analysis – confirm whether automatic measurements and interpretation are available.
Storage – check the number of ECG records the machine can retain.
Connectivity – look for USB, LAN, Wi-Fi, RS232 or other required interfaces.
Battery – confirm battery capacity and expected operating time.
Recording speeds – check supported paper speeds such as 25 and 50 mm/s.
Accessories – confirm ECG cable, electrodes, patient leads and printer paper.
Service and warranty – verify local technical support and warranty terms.
Hospital integration – if required, confirm compatibility with the facility's ECG-management, EMR, HIS or PACS environment.
Kenyan procurement specifications can be substantially more detailed for hospital installations, including requirements for networking, data export, printing, training, testing and commissioning.
Place the ECG machine on a stable surface and connect it to an appropriate power source.
Switch on the machine and check that it is functioning normally.
Enter the required patient information.
Prepare the patient and attach the ECG electrodes according to the manufacturer's instructions.
Connect the ECG lead cable securely to the electrodes.
Select the appropriate ECG recording mode.
Ask the patient to remain still and relaxed during acquisition.
Acquire the 12-lead ECG.
Review the recorded waveforms for signal quality and lead connection.
Print or save the ECG report as required.
Clean the reusable components according to the manufacturer's instructions.
ECG acquisition should be performed by appropriately trained healthcare personnel using compatible accessories and following the manufacturer's operating instructions.
A 12 channel ECG machine is an electrocardiograph designed to acquire and record ECG signals using a standard 12-lead configuration. Depending on the model, it can display, print, store and analyse ECG recordings.
The terms are frequently used together in product descriptions. 12-lead refers to the standard ECG lead configuration, while 12-channel generally refers to simultaneous signal acquisition, display or recording capabilities. Always check the manufacturer's technical specification for the exact acquisition and recording configuration.
Current listings reviewed range from approximately KSh 115,000 to KSh 240,000 for several 12-channel ECG machines, with the exact price depending on the supplier and model. Higher-specification systems may cost more.
Yes. 12-lead ECG equipment is used in hospital and clinical environments for cardiac examinations. Kenyan healthcare specifications specifically include simultaneous 12-lead ECG acquisition for medical facilities.
Many models do, but this is configuration-dependent. Some machines have an integrated thermal printer, while others may support an external printer. Confirm the exact package before purchasing.
Many digital ECG machines include internal memory. Storage capacity varies by model, with current Kenyan listings showing examples ranging from hundreds to around 1,000 records.
Some 12-channel ECG machines provide USB, RS232, LAN, Wi-Fi or other connectivity options. Advanced systems may support formats and integrations such as PDF, XML, HL7 or DICOM, but compatibility should be confirmed for the specific model.
