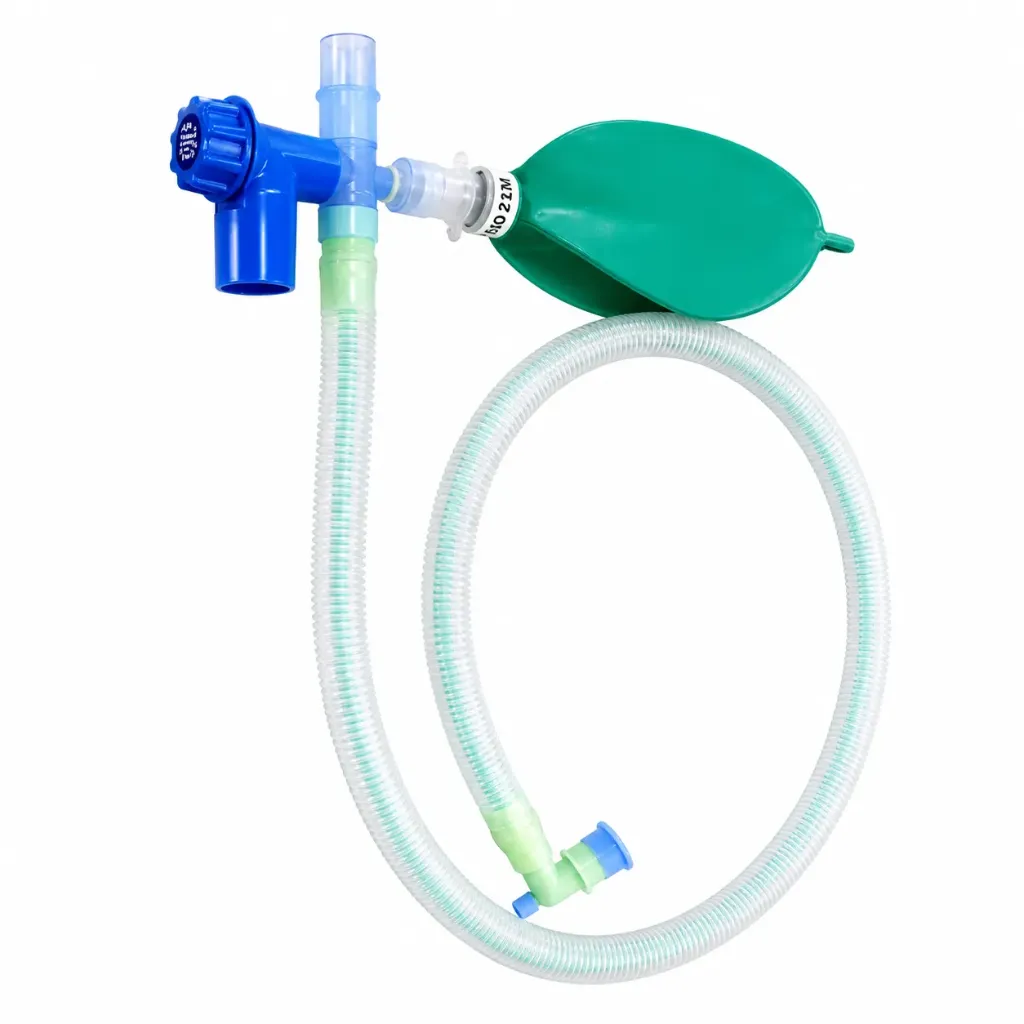

Mapleson D Breathing Circuit – Anaesthesia & Respiratory Breathing System for Controlled Ventilation

The Mapleson D Breathing Circuit is a lightweight anaesthetic breathing system designed for delivering fresh gases to patients during anaesthesia and assisted or controlled ventilation. It is widely used in operating theatres and other anaesthesia environments when connected to compatible anaesthesia equipment.

The circuit typically consists of breathing tubing, a fresh gas inlet, patient connector, reservoir bag and adjustable pressure-limiting (APL) valve, although the exact configuration varies by manufacturer.

Key Features

• Mapleson D configuration
• Suitable for anaesthesia breathing applications
• Particularly efficient for controlled ventilation when appropriate fresh-gas flows are used
• Lightweight breathing circuit
• Low-resistance design
• Reservoir bag for ventilation and gas monitoring, configuration dependent
• APL/exhaust valve, configuration dependent
• Standard connectors for compatible anaesthesia equipment
• Available in adult and paediatric configurations, depending on manufacturer
• Disposable or reusable versions available

Common Applications

• General anaesthesia
• Controlled ventilation
• Assisted ventilation
• Operating theatres
• Anaesthesia workstations
• Appropriate transport or emergency anaesthesia applications

Product Specifications

Product Name: Mapleson D Breathing Circuit

Type: Anaesthetic Breathing System

Circuit Configuration: Mapleson D

Patient Category: Adult / Paediatric, model dependent

Reservoir Bag: Included where specified

APL Valve: Configuration dependent

Tubing Length: Manufacturer dependent

Connector Size: Manufacturer dependent

Usage: Disposable / Reusable, model dependent

Application: Anaesthesia & Ventilatory Support
