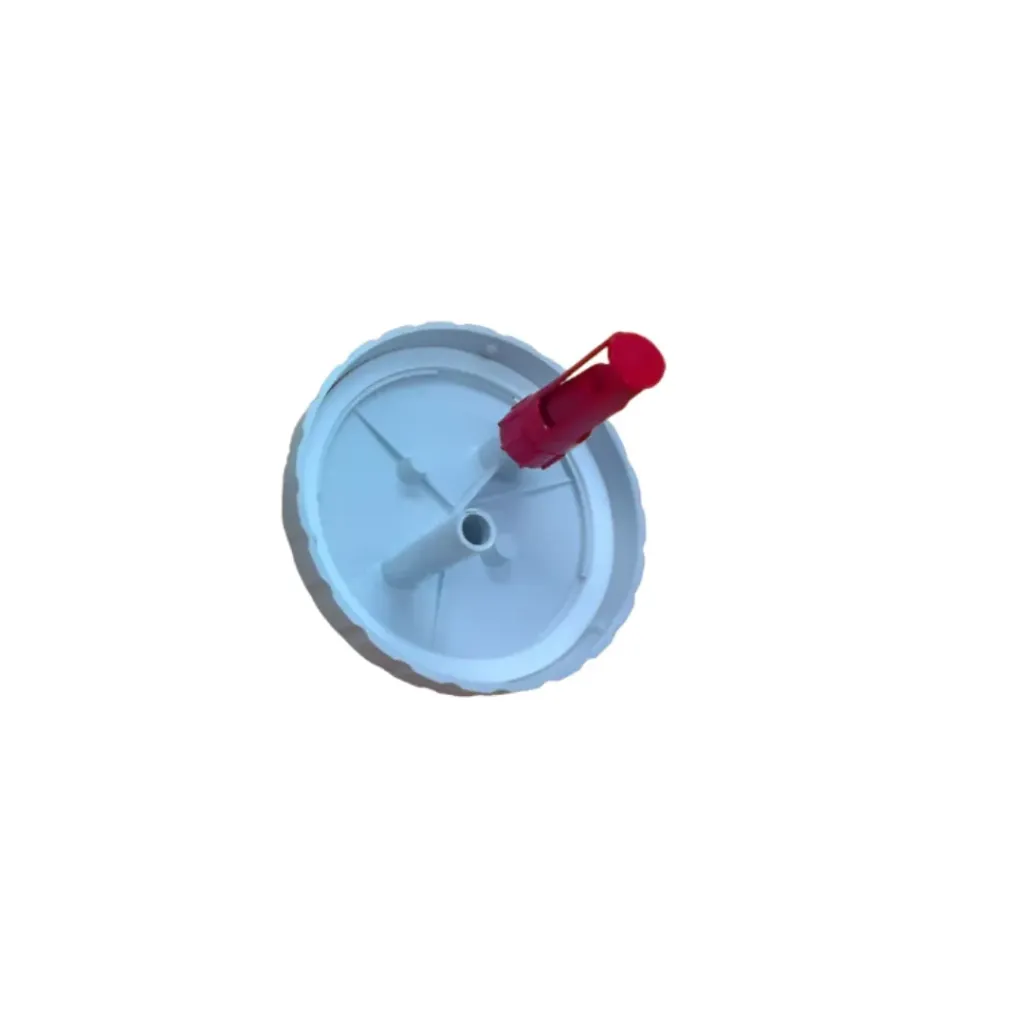

A suction bottle lid is the removable cover fitted to a medical suction collection bottle or canister. It provides the connection points for suction tubing and helps maintain an effective seal between the collection jar and suction system.
A replacement lid can be useful when an existing suction bottle cover is cracked, damaged, missing, or no longer seals properly. However, suction bottle lids are not universally interchangeable. The bottle capacity, manufacturer, lid diameter, gasket, tubing ports and machine model should be checked before ordering.
Kenyan hospital procurement documents also identify bottle-top components and suction collection-jar accessories as replacement parts for specific suction machines, highlighting the importance of model compatibility.
There is currently no reliably verified Kenya retail price for a universal suction bottle lid from the sources checked. Replacement lids are commonly sold according to the specific suction machine or bottle model.
For comparison, a current Kenya listing for a complete 2.5L glass suction bottle without lid is KSh 4,000, showing why a replacement lid should be quoted separately rather than assuming it is included with the bottle.
The final price of a suction bottle lid may depend on:
Suction machine brand and model
Bottle capacity
Lid design
Number and type of ports
Gasket or O-ring configuration
Original versus compatible replacement
Availability in Kenya
Quantity ordered
If you want to buy a suction bottle lid in Nairobi, provide the supplier with the suction machine or collection bottle model whenever possible.
For example, Kenyatta National Hospital's 2026 biomedical spares framework specifically lists a bottle-top grommet for the SAM 35 suction machine, as well as secretion bottles and gaskets for particular CAMI suction machines. This demonstrates that suction-machine replacement components can be model-specific.
Before ordering, send:
Suction machine brand
Suction machine model
Photograph of the existing lid
Photograph of the bottle neck
Number of tubing ports
Existing gasket or O-ring details, if available
This helps reduce the risk of ordering a lid that does not create a proper seal.
A replacement suction canister lid may be required when the original cover is cracked, warped, lost or damaged.
The lid normally forms part of the suction collection assembly and may incorporate:
Suction port
Patient tubing port
Overflow protection connection
Filter connection
Gasket or sealing ring
Bottle locking mechanism
The exact arrangement differs between manufacturers and models.
A damaged lid or worn gasket can allow air leakage and reduce suction performance. Replacement components should therefore be inspected for cracks, damaged ports and deteriorated seals before clinical use.
A suction jar lid is also commonly described as a suction bottle cover, suction canister lid, secretion bottle lid or aspirator bottle cap.
Generic replacement lids do exist. For example, an international medical-equipment listing describes a lid designed for 1L and 2L suction bottles and specifies a medical-grade plastic construction and sealing function. However, this does not establish compatibility with every suction jar sold in Kenya, so the exact dimensions and fitting should be confirmed.
For a hospital replacement, matching the lid to the original bottle is preferable to relying only on the stated capacity.
A suction machine bottle cover connects the collection bottle to the suction tubing and vacuum circuit.
A complete cover may include the lid itself, ports and sealing components, while other products are sold as the lid only. Always check what is included in the supplier's quotation.
For example, some replacement suction-machine caps are designed specifically for particular Yuwell suction units and 2.5L glass jars. This illustrates why a lid described simply as a “2.5L suction lid” should not automatically be assumed to fit every 2.5L bottle.
If you need a 2.5L suction bottle lid, confirm the bottle manufacturer's design before purchasing.
A 2.5L bottle may have a different:
Neck diameter
Thread or locking mechanism
Lid profile
Gasket size
Tubing-port arrangement
Overflow-protection system
Current Kenyan procurement specifications for twin-bottle suction machines use two 2,500 ml collection bottles and require glass or equivalent autoclavable material, but these specifications do not mean that every 2.5L lid will fit every 2.5L bottle.
Depending on the condition of the suction bottle assembly, you may need more than the lid itself.
Common replacement components include:
Kenyatta National Hospital's current biomedical spares tender separately identifies secretion bottles, secretion-bottle gaskets, collection jars and bottle-top grommets, reinforcing that these components may need to be sourced individually for particular suction machines.
The most reliable way to identify a replacement is by matching the lid to the exact suction-machine model.
Confirm whether the collection bottle is 1L, 2L, 2.5L or another capacity. Capacity alone is not enough to establish compatibility.
A replacement lid may require a specific gasket or O-ring. A damaged or incorrectly sized seal can result in vacuum leakage.
Compare the number, location and diameter of the tubing ports with the original lid.
For reusable clinical equipment, confirm that the replacement component is appropriate for the manufacturer's cleaning and reprocessing requirements.
Replacement suction bottle lids can be useful for:
Hospitals
Operating theatres
Wards
Emergency departments
Clinics
Dental facilities
Intensive-care areas
Ambulance equipment
Biomedical maintenance departments
The appropriate lid should be installed and tested according to the suction-machine manufacturer's instructions.
Do not buy a suction bottle lid based only on the bottle capacity.
For example, two bottles may both be 2.5L but have different neck sizes, lids, gaskets or tubing connections. A current Kenyan listing for a 2.5L suction jar does not establish that its lid will fit another manufacturer's 2.5L jar.
For the best match, provide the supplier with a photograph of the bottle and existing lid, together with the suction-machine brand and model.
A reliable current Kenya retail price for a universal suction bottle lid was not verified. Pricing depends on the suction-machine model, bottle type, lid design and whether the gasket or other fittings are included.
Replacement suction bottle lids can be sourced through medical-equipment suppliers and biomedical spare-parts channels. Provide the exact suction-machine model to confirm compatibility.
No. Two 2.5L bottles can have different necks, gaskets, ports and locking mechanisms. Always confirm compatibility.
Not necessarily. Some replacement caps are supplied with sealing components, while others are sold as the lid only. Confirm the contents of the quotation before purchase.
The lid is the main cover of the collection bottle. A grommet is a smaller sealing component used around a port or connection. Some suction systems use both.
Yes. A cracked lid, damaged port or worn gasket can allow air leakage and affect the vacuum circuit. Inspect the complete bottle assembly before clinical use.
Some lids are designed for repeated use, but cleaning and reprocessing should follow the manufacturer's instructions. Do not assume that every replacement lid is autoclavable.
